DCG – 01 , 03 | DCT – 01
- Cam Operated Type Directional Valve. These valve are used mainly for controlling a pilot circuit.
| 1 | Series |
|---|---|
| 2 |
Mounting G；SUB-Plate connections T；Threaded connections |
| 3 | Valve size |
| 4 | Spool type |
| 5 |
Roller position None：Normal R：Left Y：Upside |
Valve type “2B8”, Tank port “T” functions as a drain port. Directly connect it to the reservoir.
| Model | Valve Size |
Max. Flow ( l/min) |
Max. Pressure (Kgf/cm2) |
Max. T-Line Back Pres. (Kgf/cm2) |
Weight (kg) |
|---|---|---|---|---|---|
| DCG-01 | 1/8 | 30 | 210 | 70 | 1.3 |
| DCT-01 | |||||
| DCG-03 | 3/8 | 100 | 250 | 100 | 3.1 |
| Model | Mounting bolts | Q |
|---|---|---|
| DCG-01 | M5 X 45 mm | 4 |
| DCG-03 | M6 X 35 mm | 4 |

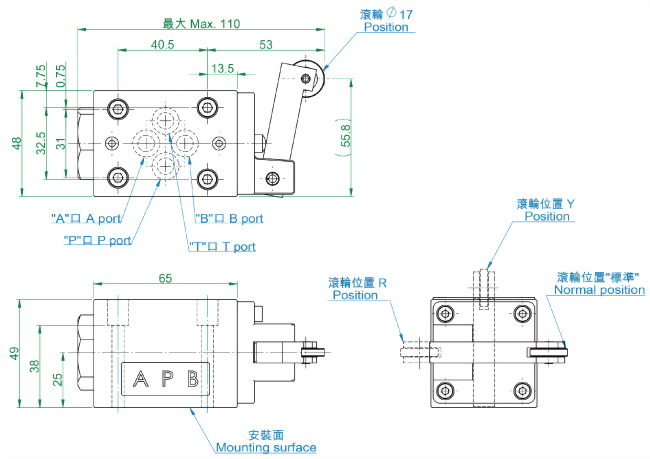

DCG - 01
DCG - 03
DCT - 01
