DSG – 01 , 03
- DSG series thes valves are adapted with strong wet-type solenoid and circuit designs to accomplish high pressure, large volume folw and folwer pressure drop.
- The optimum valve for any system can be utilized since many spool types and various solenoid are all available, along with other optional function.
| 1 | Series |
|---|---|
| 2 | Valve size 01：1/8” , 03：3/8” |
| 3 | Spool type |
| 4 | Coil type : A A110 ,A220 ,D24 …Etc |
| 5 |
10 : With lamp central connection 20 : Plug-in connection |
| 6 | Coil Voltage |
| Model |
Max. Flow ( l/min) |
Max. Pressure (Kgf/cm2) |
Max. T-Line Back Pres. (Kgf/cm2) |
Conversion Frequency Cycle/ min |
Weight (kg) | |
|---|---|---|---|---|---|---|
| AC | DC | |||||
| DSG-01-2B※ | 63 | 315 | 160 |
AC 240 Cycle / min |
1.6 | 1.6 |
| DSG-01-2D※ | 2.2 | 2.2 | ||||
| DSG-01-3C※ | 2.2 | 2.2 | ||||
| DSG-03-2B※ | 120 | 315 | 160 |
AC 240 Cycle / min |
2.9 | 3.6 |
| DSG-03-3C※ | 3.6 | 5 | ||||
| Mains | Coil type | Serviceable Range | |
|---|---|---|---|
| AC Solenoid | A110 | 50Hz | 90-110 V |
| 60Hz | 100-120 V | ||
| A220 | 50Hz | 180-220 V | |
| 60Hz | 220-240 V | ||
| DC Solenoid | D24 | 21.6~26.4 | |
| Model | Mounting bolts | Q |
|---|---|---|
| DSG-01 | M5 X 45 mm | 4 |
| DSG-03 | M6 X 35 mm | 4 |

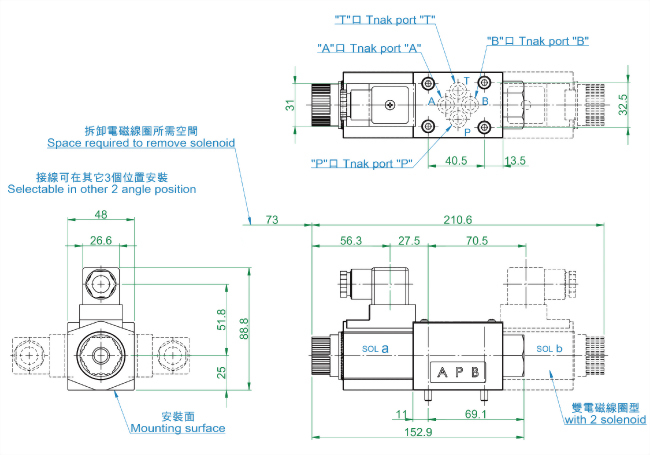

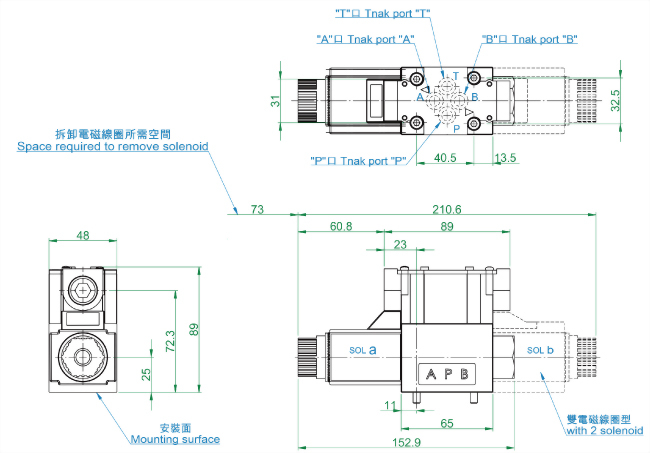

DSG - 01-AC-10
DSG - 01-AC-20
DSG - 01-DC-10
DSG - 01-DC-20
DSG - 03-AC-10
DSG - 03-AC-20
DSG - 03-DC-10
DSG - 03-DC-20
