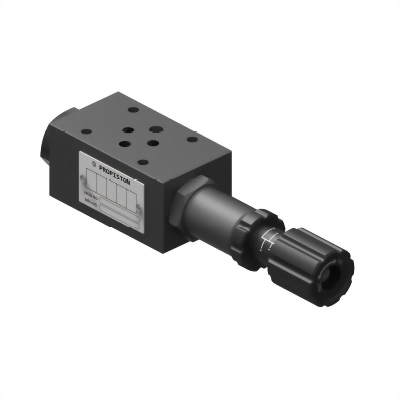

• MRP-03

MRP-03

  • This modular valve makes the pressure in part of the circuit lower than that of the main circuit.
  • Even when pressure changes in the primary main circuit, the reduced secondary pressure is maintained at a constant level.
1 Series
2 Action form
P：P Port A：A Port B：B Port
3 Valve size
4 Pres. adj. range
Model Valve Size Max. Pressure kgf/cm2 Pressure Adj. Range kgf/cm2 Max. Flow ( l/min) Weight (kg)
MRP-03 3/8” 250 B : 8 ~70
C : 8 ~140
H : 35~250 		80 3.5
MRA-03
MRB-03
* There is also sale no regulating handle type, please contact the PROPISTON co., .
MR ※ - 03
