MSW-03
- This modular valve is used to control actuator speed and for other flow control valve applications.
| 1 | Series |
|---|---|
| 2 | Valve size |
| 3 |
Direction of flow X：Meter-Out Y：Meter-In |
| Model | Valve Size |
Max. Operating Pressure kgf/cm2 |
Max. Flow (l /min) |
Weight (kg) | |
|---|---|---|---|---|---|
| MSA-03-X | MSA-03-Y | 3/8” | 250 | 70 | 2.8 |
| MSB-03-X | MSB-03-Y | 2.8 | |||
| MSW-03-X | MSW-03-Y | 3 | |||

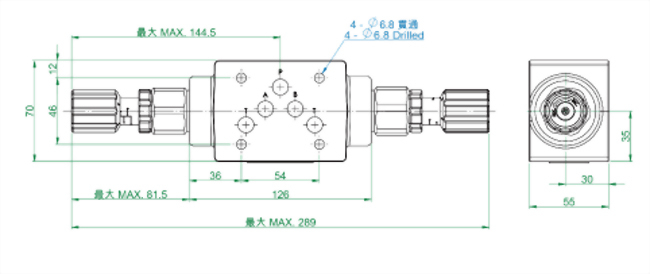

MSA/B - 03 - X
MSA/B - 03 - Y
MSA/B - 03 - Y
MSW - 03 - X
MSW - 03 - Y
MSW - 03 - Y
