  • Counter balance valve BR series can avoid the falling of mechanism due to heavy from itself , and using in position occur the back pressure .
1 Series
2 Valve size
3 Pressure Adjusting Range
Model No. Valve Size Max. Pressure
kgf/cm2
Pressure Adj. Range
(kgf/cm2)
Max Flow
(l/min)
Weight
(kg)
BR-03 (MCA-03) 3/8 250 B : 70
C : 140
H : 250
100 7.3
BR-06 3/4 200 9.2
BR-10 1-1/4 400 19.5
Model Mounting bolts Q
BR-03-※-10 M12X110 長
M12X135 mm
2
2
BR-06-※-10 M16X105 長
M16X125 mm
2
2
BR-10-※-10 M20X140 長
M20X160 mm
2
2

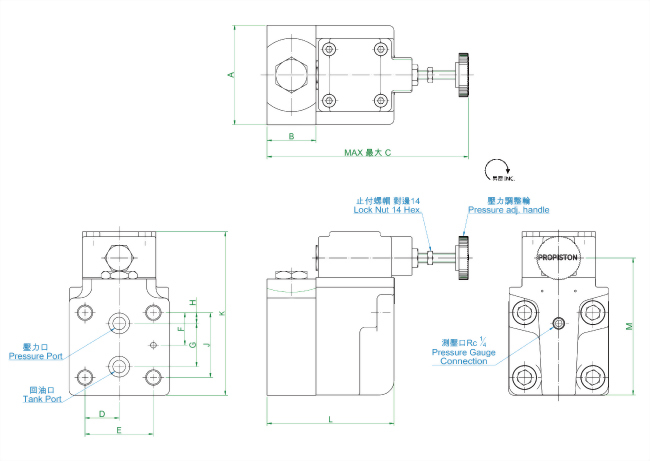

BR - 03

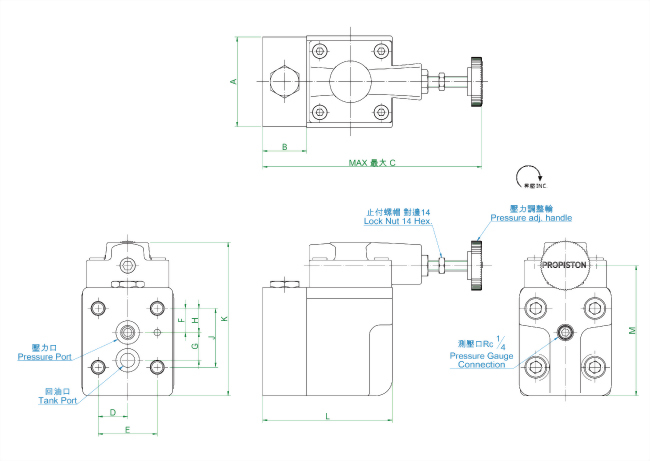

BR - 06.10
Model A B C D E F G H J K L M
BR-03 82 40 196 26.9 83.8 22 24.5 22 53.8 140 118 119
BR-06 103 50 206 35 70 33.4 44.5 11 66.7 161 130 141
BR-10 124 71 244.5 41.5 83 33.4 64 12 88.9 195 158.5 175
