Name: EBG – 03 , 06 , 10
Brand: PROPISTON HYDRAULICS CO.,LTD.

EBG – 03 , 06 , 10

This valve is combined with a proportional electro-hydraulic pilot relief valve and a specially developed low-noise relief valve. Owing to special vent restrictor, this valve can make pressure control more precise and stable.

1	Series(SUB-Plate connections )
2	Valve size ： 03：3/8” 06：3/4” 10：1-1/4”
3	Pres. adj. range kgf/cm2 C：6－160 kgf / cm² H：6－245 kgf / cm² C：9－160 kgf / cm² H：9－245 kgf / cm² C：11－160 kgf / cm² H：11－245 kgf / cm²
4	Safety valve None：With safety valve T：Without safety valve
5	Design Number

Our company also have EBG-03-B(5-50KG Type). Please contact Propiston Co for further information.

Description	Unit	EBG-03	EBG-06	EBG-10
Max. flow	l /min	100	200	400
Min. flow	l /min	3	3	3
Pressure adjustment range	kgf / cm²	Refer to How to order
Rated current	mA	C：770	C：750	C：730
Rated current		H：820	H：800	H：780
Coil resistance (20°C)	Ω	10
Hysteresis		Less than 2 % *1
Repeatability		Less than 1 % *2
Frequency response (st-90°)		12Hz	13Hz	14Hz
Hysteresis		P-DC (Refer to P-DC)
Repeatability	kg	6.8	7.8	12

*1 The figures in the table above are those obtained when used in conjunction with PROPISTON power amplifier.
*2 The repeatability of the valve is obtained by having it tested independently on the conditions similar to its original testing.

Model	Mounting bolts	Q
EBG-03	M12 X 35 mm	4
EBG-06	M16 X 45 mm	4
EBG-10	M20 X 60 mm	4

EBG - 03 / 06-60T

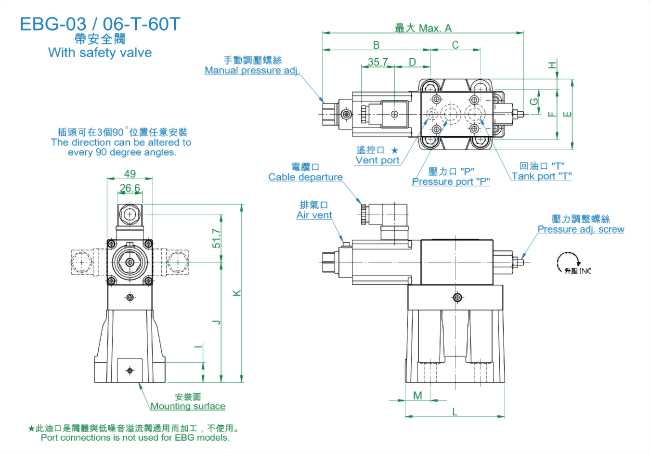

EBG - 03 / 06-T-60T

Model	A	B	C	D	E	F	G	H
EBG-03-※	216	115.9	53.8	38.5	76	53.8	26.9	11.1
EBG-06-※	216	125.3	66.7	47.9	99	70	35	14.5
EBG-03-※-T	204.5	117.6	53.8	40.2	76	53.8	26.9	11.1
EBG-06-※-T	205.2	125.3	66.7	42.2	99	70	35	14.5

Model	I	J	K	L	M
EBG-03-※	21.5	129.3	192	107	27.1
EBG-06-※	28.8	130	129.7	123.2	37.5
EBG-03-※-T	21.5	153	215.7	107	27.1
EBG-06-※-T	28.8	153.2	215.9	123.2	37.5

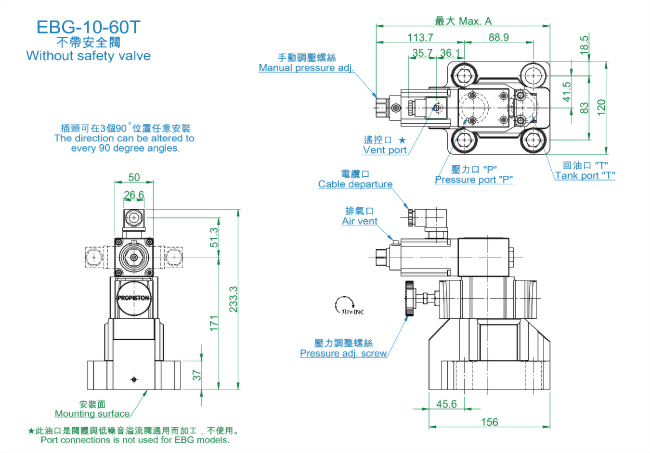

EBG - 10-60T

EBG - 10-T-60T
