DG-01
- Hydraulic valve DG-01/ DT-01 can be connected to vent of balanced piston type and with small flows pressure to control remotely large flows pressure which can be matched versatile hyd. system requirement.
- Hydraulic valve DG-02/DT-02 can be used to control small flows hyd. System pressure.
D G-01-※
1 2 3 4
| 1 | Series |
|---|---|
| 2 | G：SUB-Plate mounting |
| 3 | Valve size |
| 4 | Pressure Adjusting Range |
| Model No. |
Volume (cm3/rev) |
Pressure Adj. Range (kgf/cm2) |
Max Flow (l/min) |
Weight (kg) |
|---|---|---|---|---|
| DG-01 | 1/8 |
B : 70 C : 140 H : 210 |
2 | 1.6 |
| Model | Mounting bolts | Q |
|---|---|---|
| DG-01 | M5X 45 mm | 4 |

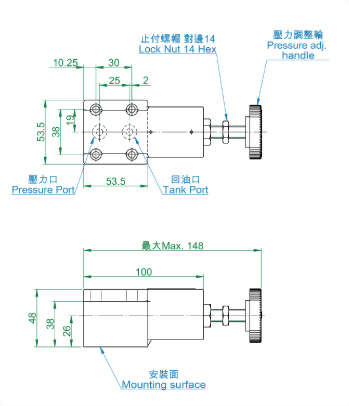

DG - 01
