BUCG – 06 , 10
- Unloading relief valve BUCG series is used to circuit with oil storage, or pump in high-low pressure , to make sure the pump operation under the minimum loading.
| 1 | Series |
|---|---|
| 2 | SUB-Plate mounting |
| 3 | Valve Size |
| 4 | Pressure Adjusting Range |
| Model No. | Valve Size |
Pressure Adj. Range (kgf/cm2) |
Max. Flow ( l/min) |
Weight(kg) |
|---|---|---|---|---|
| BUCG-06 | 3/4 | H : 250 | 125 | 12 |
| BUCG-10 | 1 1/4 | 250 | 22 |
| Model | Mounting bolts | Q |
|---|---|---|
| BUCG-06 |
M16X55 mm M16X110 mm M16X130 mm |
2 2 2 |
| BUCG-10 |
M20X70 mm M20X160 mm |
2 4 |

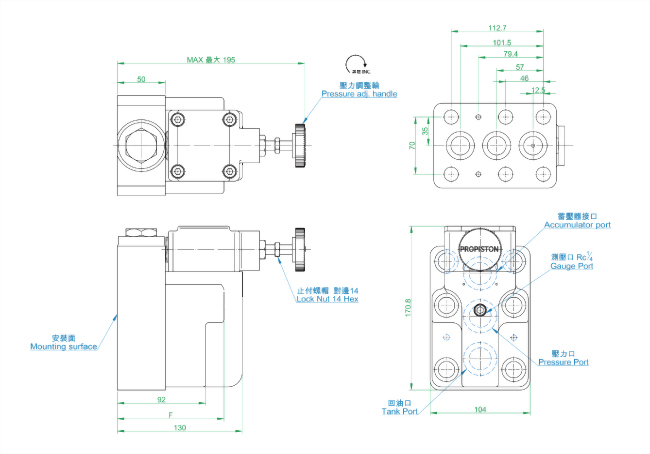

BUCG - 06
BUCG - 10
