• SBSR – 03 , 06 , 10

SBSR – 03 , 06 , 10

  • Solenoid pilot operated relief valve S-BSR series is composed of relief valve and solenoid valve.
  • Solenoid valve is mounted on top of relief valve and connected with vent port of relief valve.
  • The power signal of solenoid can control the system pressure.
proimages/Pressure_Control_Series_/sbsg-description.jpg

S-BSR- 03 - H- 2B2- R -A220 - 20

1    2     3    4    5    6       7     8

1 Low noise type
2 Series
3 Valve size
4 Pressure Adjusting Range
5 Solenoid valve type
6 Pressure Handle position
R : Handle is facing to the pressure port
L : Handle is facing to the tank port
7 Coil voltage
8 10 : With lamp central connection
20 : Plug-in connection
Model No. Valve Size Pressure Adj. Range
(kgf/cm2)
Max Flow
(l/min)
Weight
(kg)
SBSR-03 3/8 B : 70
C : 140
H : 250
200 9.9
SBSR-06 3/4 400 9.7
SBSR-10 1-1/4 18.4
Model Mounting bolts Q
SBSR-03 M12X 75 mm 4
SBSR-06 M16X 95 mm 4
SBSR-10 M20X 130 mm 4

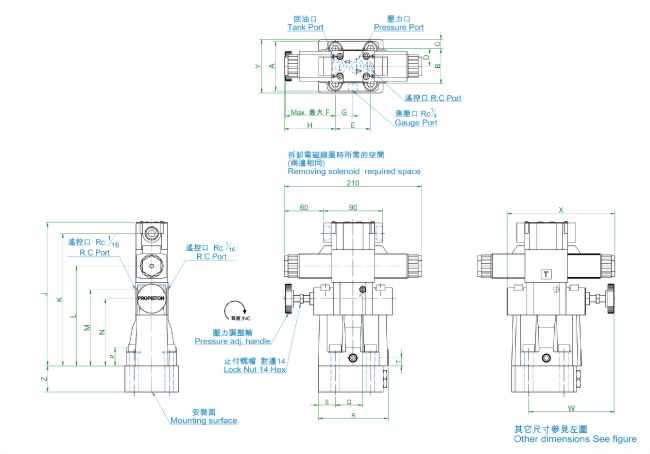

SBSR - 03,06,10(L)
proimages/Pressure_Control_Series_/sbsr-RC01.jpg
Model A B C D E F G H J K L M
SBSR-03 76 53.8 11.1 26.9 53.8 73.6 26.9 78.1 21.6 199 152.5 103
SBSR-06 98 70 14 35 66.7 58.8 33.7 63.3 21.6 199 152.5 103
SBSR-10 120 82.6 18.7 41.3 88.9 46.1 44.9 50.1 50.1 216 187.5 118

Model N P Q R S T U W X Y Z
SBSR-03 103 21.5 36.6 106 26.1 13 158 137.4 168 82 40
SBSR-06 103 26 51.4 122 19.3 13 166 142.2 166 102.5 50
SBSR-10 117 37 64.6 155 21.1 18 168.8     120 72
