high pressure nozzle

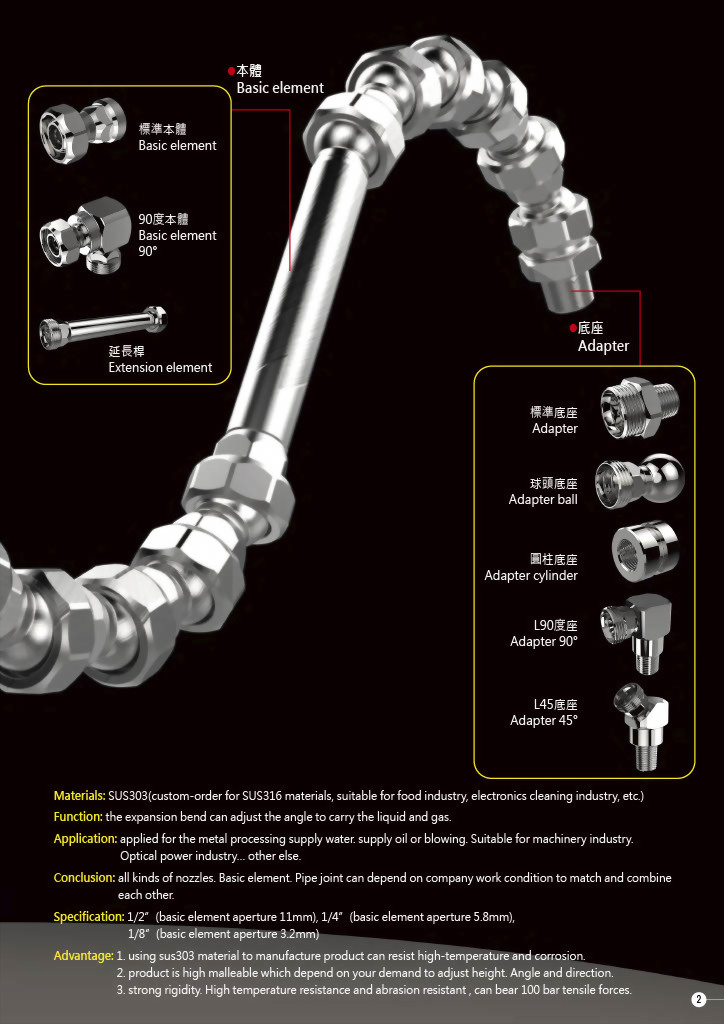

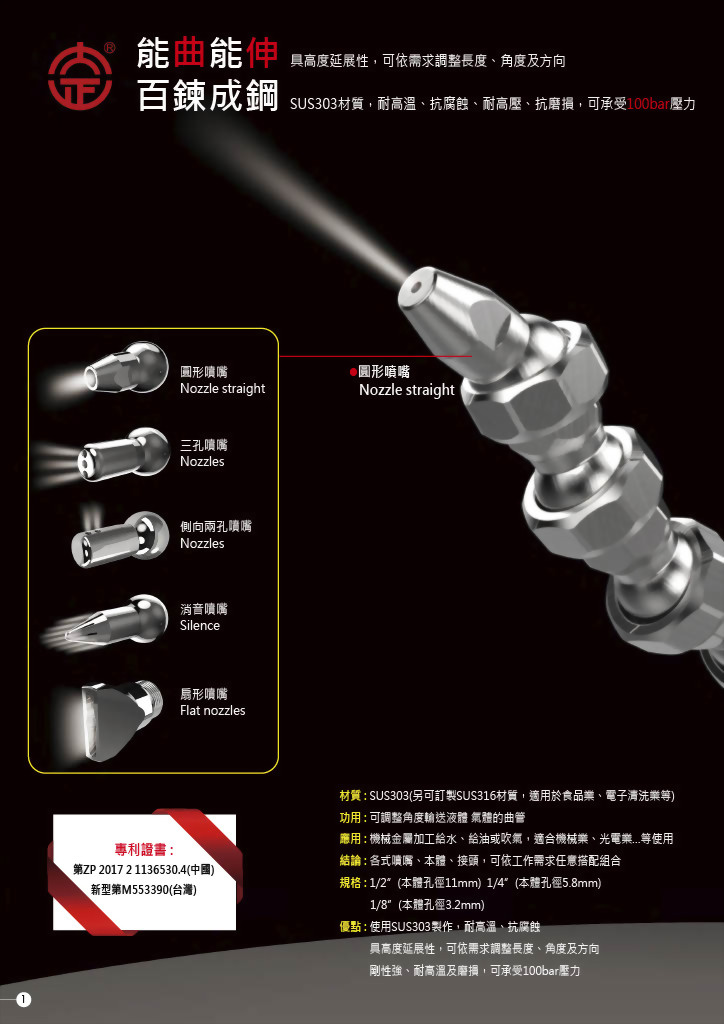

Material: SUS303 (SUS316 material can also be customized, suitable for food industry, electronic cleaning industry, etc.)
Function: Curved pipe that can adjust the angle to transport liquid and gas
Application : Water supply, oil supply or air blowing for mechanical metal processing, suitable for mechanical industry, photoelectric industry...etc.
Conclusion: All kinds of nozzles, bodies, and joints can be matched and combined arbitrarily according to work requirements
Specifications: 1/2”(Body hole diameter 11mm)
Advantages: Made of SUS303, high temperature resistance and corrosion resistance
Highly extensible, the length, angle and direction can be adjusted according to the needs
Strong rigidity, high temperature and wear resistance, can withstand 100bar pressure
|
噴嘴 NOZZLES |
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
D | B | L | A° | 圖示 |
| 2-DG-65 |
圓形噴嘴 ( 孔 6.5 ) nozzle (straight ø6.5) |
ø6.5×ø13 | 6.5 | 13 |
33 |
20 |
|
|
噴嘴 NOZZLES |
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S) SCREW |
六角面(H) HEXAGON |
D | B | L | A° | 圖示 |
| 2-DG-20-GF |
直噴型噴嘴 flat nozzle(straight) |
ø2×13×ø13 |
M24×P1.25 |
27 | 13 | 13 | 39.2 | 25 |
|
|
| 2-DG-30-GF |
直噴型噴嘴 flat nozzle(straight) |
ø3×17×ø13 |
M24×P1.25 |
27 | 17 | 13 |
39.2 |
25 | ||
| 2-DG-30-SF |
扇型噴嘴 flat nozzle (fan-shaped) |
ø3×20×ø13 |
M24×P1.25 |
27 | 20 | 13 | 39.2 | 25 |
 |
|
轉接頭 ADAPTERING ELEMENT
|
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S1) SCREW |
螺紋(S2) SCREW |
L |
六角面1(H1) HEXAGON |
六角面2(H2) HEXAGON |
圖示 |
|
2-DG-PT1/4 |
轉接球-PT1/4" adaptering element(PT1/4") |
PT 1/4"×M24 |
PT 1/4" |
M24×P1.25 |
35.2 | 19 | 27 |
 |
|
本體 BASIC ELEMENT
|
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S) SCREW |
L |
六角面1(H1) HEXAGON |
六角面2(H2) HEXAGON |
圖示 |
|
2-BG-1 |
標準本體 basic element |
M24×32.3mm |
M24×P1.25 |
32.3 | 19 | 27 |
 |
|
| 2-BG-100 |
延長桿 extension element |
M24×100mm | M24×P1.25 |
100 |
19 |
27 |
 |
|
本體 BASIC ELEMENT
|
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S) SCREW |
L1 | L2 |
六角面1(H1) HEXAGON |
六角面2(H2) HEXAGON |
四角面 (Q) QUADRILATERAL |
圖示 |
|
| 2-BG-A90 |
90 度本體 basic element 90º |
M24×90° |
M24×P1.25 |
39.5 |
42.2 |
19 | 27 | 25 |
 |
|

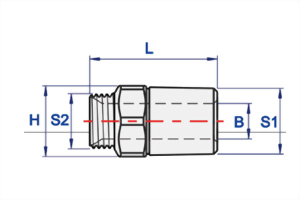

底座 ADAPTER |
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S1) SCREW |
螺紋 (S2) SCREW |
L | B |
六角面 (H) HEXAGON |
圖示 |
| 2-CG-1/4 |
標準底座-PT 1/4"
adapter(PT1/4") |
PT 1/4"×180° |
PT 1/4" |
M24×P1.25 | 28 | 12.5 | 24 |
 |
|
| 2-CG-3/8 |
標準底座-PT 3/8"
adapter(PT3/8") |
PT 3/8"×180° |
PT 3/8" |
M24×P1.25 | 28 | 12.5 |
24 |
||
| 2-CG-1/2 |
標準底座-PT 1/4" adapter(PT1/2") |
PT 1/2"×180° |
PT 1/2" |
M24×P1.25 | 32 | 12.5 | 24 |
