EFBG – 03 , 06

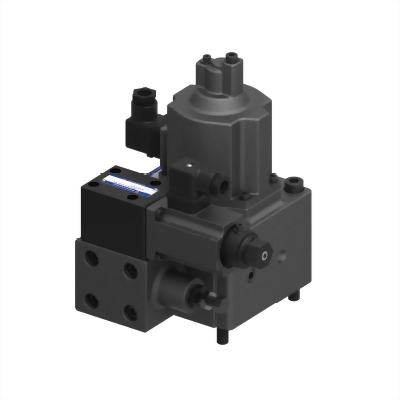

This relief and flow control valve is an energy-saving valve that supplies the minimum pressure and flow necessary for actuator drive. Since this valve controls the pump pressure by following the load pressure while keeping the differential pressure minimized, it serves as a low power-consumption, energy-saving, meter-in, controlled flow adjustment valve. Further, since a temperature compensation function is incorporated, this valve provides consistent flow control without regard to the fluid temperature.

1	Series(SUB-Plate connections )
2	Valve size ： 03，06
3	Max. Metered flow
4	Proportional pilot relief valve pressure adjustment range.
5	Design Number

Description		Unit	EFBG-03	EFBG-06
Max. flow		l /min	125	250
Metered flow adjustment range		l /min	1~125	2.5~250
Flow controls	Differential pressure		6	7
	Hysteresis		小於7 %*1	小於7 %*1
	Repeatability		1 % *2	1 % *2
	Rated current	mA	600	600
	Coil resistance	(20°C)Ω	43.5	43.5
Pressure controls*3	Pressure Adj. Range	kgf / cm²	C：14～140	C：15～140
	Pressure Adj. Range	kgf / cm²	H：14～210	H：15～210
	Hysteresis		小於3 %*1	小於3 %*1
	Repeatability		1 % *2	1 % *2
	Rated current	mA	C：800	C：800
	Rated current	mA	H：900	H：900
	Coil resistance	(20°C)Ω	10	10
Mass		kg	17.2	31.5

*1 The figures in the table above are those obtained when used in conjunction with PROPISTON power amplifier.
*2 The repeatability of the valve is obtained by having it tested independently on the conditions similar to its original testing.
*3 The ratings for pressure controls is applied to models with proportional pilot relief valve.（EFBG-※-※-C,H）
*4 The other with 60 l / min and 160 l / min specifications, if necessary, please contact the sales staff. (EFBG-03)

Model	Mounting bolts	Q
EFBG-03	M10 X 95 mm	4
EFBG-06	M16 X 130 mm	4

EFBG - 03 - 125

EFBG - 06 - 250

EFBG – 03 , 06

Related Products

EBG – 03 , 06 , 10

EDG – 01
