S-BG – 03 , 06 , 10

Remote Control Relief Valves are used for hydraulic pressure control valve(Relief Valve, Pressure Reducing Valve) by remote control.
Relief Valve is used to protect hydraulic system from excessive pressure and can also be used to maintain a constant pressure in the hydraulic system.

S B G- 06-※-L

1 2 3 4 5 6

1	Low noise type
2	Series
3	SUB-Plate mounting
4	Valve size
5	Pressure adjusting range
6	Pressure Handle position R : Handle is facing to the pressure port L : Handle is facing to the tank port

Model No.	Valve Size	Pressure Adj. Range (kgf/cm2)	Max Flow (l/min)	Weight (kg)
SBG-03	3/8	B : 70 C : 140 H : 250	100	4.6
SBG-06	3/4		200	6
SBG-10	1-1/4		400	9.7

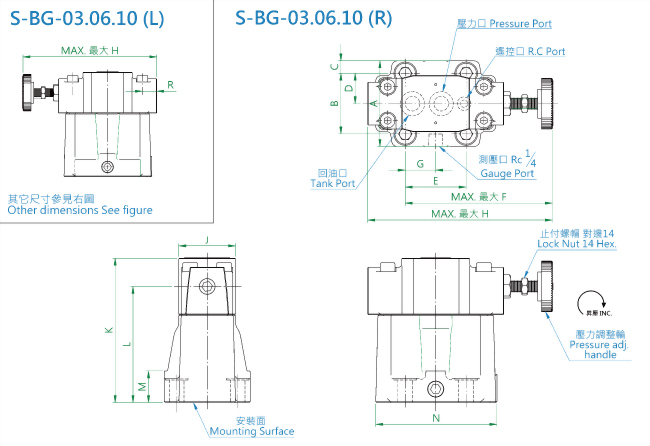

S-BG - 03,06,10

Model	A	B	C	D	E	F	G	H
S-BG-03	76	53.8	11.1	26.9	53.8	80.1	26.9	170
S-BG-06	96	70	14	35	66.7	65.3	33.7	163.5
S-BG-10	122	82.6	19.3	41.3	88.9	52.6		170

Model	J	K	L	M	N	P	Q	R
S-BG-03	50	128	103	21.5	106	26.1	13	36.1
S-BG-06	50	128	103	26	123	19.3	13	21.3
S-BG-10	63	145	117	37	150	21.1
