SRG – 03, 06
- Restrictor SRG series is to adjust the circuit speed.
- When pressure is fixed or changeable, it allows having a little flow by using this valve.
-
| 1 | Series |
|---|---|
| 2 |
Mounting G；SUB-Plate connections |
| 3 | Valve Size |
| Model No. | Valve Size |
Max. Flow (l/min) |
Weight (kg)) |
|---|---|---|---|
| SRG-03 | 3/8 | 30 | 1.4 |
| SRG-06 | 3/4 | 80 | 4.2 |
| Model | Mounting bolts | Q |
|---|---|---|
| SRG-03 | M8 X 35 mm | 4 |
| SRG-06 | M8 X 45 mm | 4 |

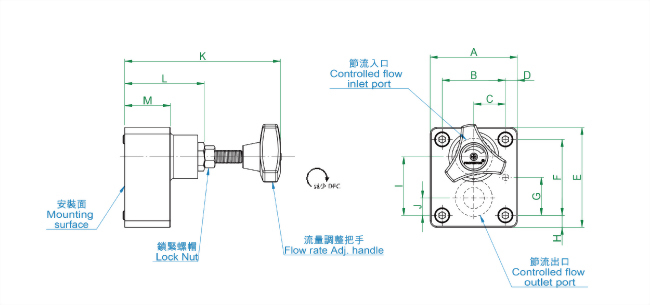

SRG - 03, 06
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SRG-03 | 60 | 40 | 20 | 10 | 80 | 60 | 30 | 10 | 45 | 15 | 118 | 61 | 30 |
| SRG-06 | 80 | 58 | 29 | 11 | 92 | 70 | 35 | 11 | 54 | 16 | 143 | 73 | 42 |
