High Pressure Adjustable Tube
function:
Curved pipe for conveying liquid and gas with adjustable angle.
application:
Water supply, oil supply or air blowing for mechanical metal processing. Suitable for use in machinery industry, photoelectric industry...etc.

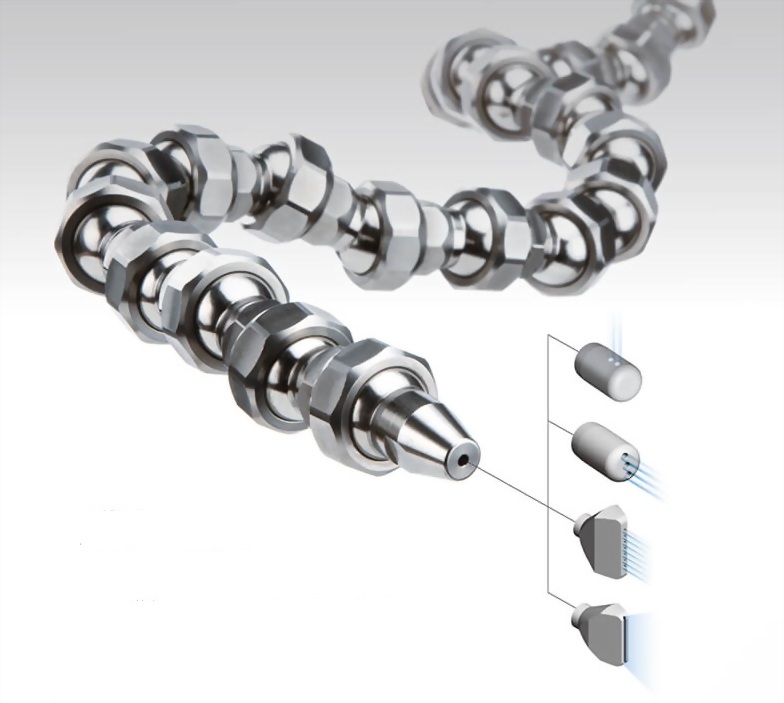

structure:
Various nozzles, main bodies, 90-degree main bodies, extension rods, and joints can be arbitrarily matched and combined according to work requirements.
Specification: 1/2 (body diameter 5.8mm)
1/4 (body hole diameter 11mm)
advantage:
Made of SUS303, high temperature resistance and corrosion resistance.
Highly malleable, the length, angle and direction can be adjusted according to requirements.
Strong rigidity, high pressure resistance and abrasion resistance, and can withstand 100bar pressure.
Patent certificate number:
No. ZP201721136530.4 (China)
New Model No. M553390 (Taiwan)
|
噴嘴 NOZZLES |
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
D | B | L | A° | 圖示 |

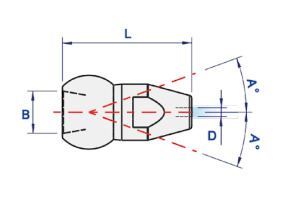

| 1-DG-15 |
圓形噴嘴 ( 孔 1.5 ) nozzle(straight ø1.5) |
ø1.5×ø5.8 | 1.5 | 5.8 | 22 | 20 |
|
|
| 1-DG-30 |
圓形噴嘴 ( 孔 3.0 ) nozzle(straight ø3.0) |
ø3.0×ø5.8 | 3 | 5.8 | 22 | 20 | ||
| 1-DG-40 |
圓形噴嘴 ( 孔 4.0 ) nozzle(straight ø4.0) |
ø4.0×ø5.8 | 4 | 5.8 | 22 | 20 | ||

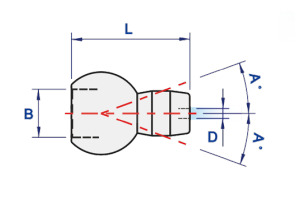

| 1-DG-15-S |
大角度噴嘴 ( 孔 1.5 ) nozzle(wide-angle ø1.5) |
ø1.5×ø7.3 | 1.5 | 7.3 | 18 | 35 |
|
|
| 1-DG-30-S |
大角度噴嘴 ( 孔 3.0 ) nozzle(wide-angle ø3.0) |
ø3.0×ø7.3 | 3 | 7.3 | 18 | 35 | ||
| 1-DG-40-S |
大角度噴嘴 ( 孔 4.0 ) nozzle(wide-angle ø4.0) |
ø4.0×ø7.3 | 4 | 7.3 | 18 | 35 | ||

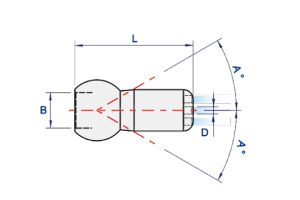

| 1-DG-15-3 |
三孔噴嘴 nozzle(3×ø1.5) |
3-ø1.5×ø7.3 | 1.5 | 7.3 | 24.3 | 30 |
|
|

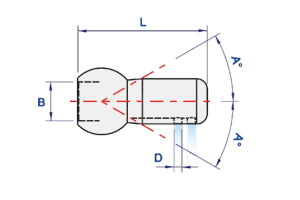

| 1-DG-15-2-A90 |
側向二孔噴嘴 nozzle(90º×2×ø1.5) |
2-ø1.5×ø7.3 | 1.5 | 7.3 | 24.3 | 30 |
|
|
噴嘴 NOZZLES |
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S) SCREW |
六角面(H) HEXAGON |
D | B | L | A° | 圖示 |
| 1-DG-20-GF |
直噴型噴嘴 flat nozzle(straight) |
ø2×13×ø7.3 |
M14×P1.0 |
16 | 13 | 7.3 | 49 | 25 |
|
|
| 1-DG-30-GF |
直噴型噴嘴 flat nozzle(straight) |
ø3×17×ø7.3 |
M14×P1.0 |
16 | 17 | 7.3 | 49 | 25 | ||
| 1-DG-30-SF |
扇型噴嘴 flat nozzle (fan-shaped) |
ø3×20×ø7.3 |
M14×P1.0 |
16 | 20 | 7.3 | 49 | 25 |
 |
|
特殊噴嘴 SPECIAL NOZZLES |
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
B | L | A° | 圖示 |

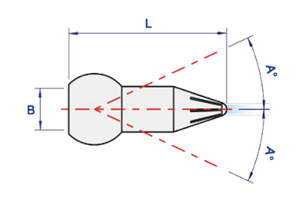

| 1-DG-AIR |
消音噴嘴 nozzle(slience) |
噪音值低 (79db), 可減噪 67%, 能源節省 37% Sound level (79db), Noise reduction 67% Energy savings 37% |
7.3 | 27.6 | 25 |
|
|
轉接頭 ADAPTERING ELEMENT
|
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S1) SCREW |
螺紋(S2) SCREW |
L |
六角面1(H1) HEXAGON |
六角面2(H2) HEXAGON |
圖示 |
|
1-DG-PT1/8 |
轉接球頭-PT1/8" adaptering element(PT1/8") |
PT 1/8"×M14 |
PT 1/8" |
M14×P1.0 |
28 | 12 | 16 |
 |
|
|
1-DG-DB |
雙球轉接頭 adaptering element (double-ball) |
PT 1/8"×M14 |
M14×P1.0 |
M14×P1.0 |
25 | 16 |
16 |
 |
|
本體 BASIC ELEMENT
|
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S) SCREW |
L |
六角面1(H1) HEXAGON |
六角面2(H2) HEXAGON |
圖示 |
|
1-BG-1 |
標準本體 basic element |
M14×21.5mm |
M14×P1.0 |
21.5 | 11 | 16 |
 |
|
|
1-BG-75 |
延長桿 extension element |
M14×75.5mm |
M14×P1.0 |
75.5 | 11 |
16 |
 |
|
本體 BASIC ELEMENT
|
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S) SCREW |
L1 | L2 |
六角面1(H1) HEXAGON |
六角面2(H2) HEXAGON |
四角面(Q) QUADRILATERAL |
圖示 |
|
1-BG-A9 |
90 度本體 basic element 90º |
M14×90° |
M14×P1.0 |
26.3 |
29.5 |
11 |
16 |
16 |
 |
|
底座 ADAPTER |
L 型底座 adapter-45° /90° -L |
圖示 |
|||||||||
|
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S1) SCREW |
螺紋(S2) SCREW |
L1 |
L2 |
B |
六角面(H) HEXAGON |
四角面(Q) QUADRILATERAL |
||
|
1-CG-L90-1/4-L |
L90 底座 -PT1/4" 長 adapter(90º-L-PT1/4") |
PT 1/4"×90° |
PT 1/4" |
M14×P1.0 |
32 |
5.8 |
26.3 |
11 |
16 |
|
|
|
1-CG-L90-1/8-L |
L90 底座 -PT1/8" 長 adapter(90º-L-PT1/8") |
PT 1/8"×90° |
PT 1/8" |
M14×P1.0 |
32 |
5.8 |
24.3 |
11 |
14 |
||
|
1-CG-L45-1/4-L |
L45 底座 -PT1/4" 長 adapter(45º-L-PT1/4") |
PT 1/4"×45° |
PT 1/4" |
M14×P1.0 |
33 |
8 |
10.5 |
11 |
16 |
|
|
|
1-CG-L45-1/8-L |
L45 底座 -PT1/8"長 adapter(45º-L-PT1/8") |
PT 1/8"×45° |
PT 1/8" |
M14×P1.0 |
33 |
7.2 |
10.5 |
11 |
14 |
||
|
1-CG-L45-1/4-S |
L45 底座 -PT1/4" 短 adapter(45º-S-PT1/4") |
PT 1/4"×45° |
PT 1/4" |
M14×P1.0 |
25 |
7.2 |
10.5 |
11 |
16 |
||
|
1-CG-L45-1/8-S |
L45 底座 -PT1/8" 短 adapter(45º-S-PT1/8") |
PT 1/8"×45° |
PT 1/8" |
M14×P1.0 |
21 |
7.2 |
10.5 |
11 |
14 |
||
|

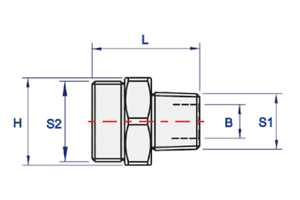

底座 ADAPTER |
標準底座adapter-basic |
圖示 |
|||||||
|
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S1) SCREW |
螺紋(S2) SCREW |
L |
B |
六角面(H) HEXAGON |
||
|
1-CG-1/8 |
標準底座-PT 1/8" adapter(PT1/8") |
PT 1/8"×180° |
PT 1/8" |
M14×P1.0 |
18.5 |
5.8 |
15 |
|
|
|
1-CG-1/4 |
標準底座-PT 1/4" adapter(PT1/4") |
PT 1/4"×180° |
PT 1/4" |
M14×P1.0 |
18.5 |
5.8 |
15 |
||
|
1-CG-3/8 |
標準底座-PT 3/8" adapter(PT3/8") |
PT 3/8"×180° |
PT 1/8" |
M14×P1.0 |
18.5 |
8 |
17 |
||
|
球頭底座adapter-ball |
圖示 |
||||||||
|
型號 MODEL |
產品品名 PRODUCT |
規格 SPECIFICATIONS |
螺紋(S) SCREW |
R |
L |
B |
六角面(H) HEXAGON |
||
|
1-CG-B12 |
球頭底座ø12 adapter(ball ø12) |
ø12×180° |
M14×P1.0 |
ø12 |
24 |
7.2 |
11 |
|
|
|
1-CG-B14 |
球頭底座ø14 adapter(ball ø14) |
ø14×180° |
M14×P1.0 |
ø14 |
25 |
7.2 |
11 |
||
|
1-CG-B16 |
球頭底座ø16 adapter(ball ø16) |
ø16×180° |
M14×P1.0 |
ø16 |
26 |
7.2 |
11 |
||
|
圓柱底座adapter-cylinde |
圖示 |
||||||||
|
型號 MODEL |
產品品名
PRODUCT |
規格 SPECIFICATIONS |
螺紋(S) SCREW |
R |
L |
||||
|
1-CG-C16 |
圓柱底座ø16 adapter (cylinder ø16) |
ø16×PT 1/8" |
PT 1/8" |
ø16 |
13.4 |
|
|||
